SEA TRIAL KIT
VESSEL SHAFT TORQUE, POWER, & SPEED MEASUREMENT SYSTEM
Binsfeld Engineering’s Sea Trial Kit provides everything needed to measure shaft torque, speed, and power on a vessel during sea trials. The all-in-one system is capable of measuring and recording data simultaneously for up to 2 shafts, at a rate of up to 2400 Hz for torsional vibration testing. Components are packaged in an easily transportable, robust, and compact case, allowing for easy set-up and transport of the system between jobs.
The sea trial kit includes the following items:
Robust carrying case. Houses all system components. Stationary components are integrated into the case and extra storage space is included for easy transport of accessory items. Includes retractable handle and wheels. Dimensions 12″D x 18.5″W x 22.5″L.
TorqueTrak 10K Telemetry Units. Measure the torque on the shaft and transmit the torque signal to receivers integrated into the carrying case. A pair of TorqueTrak 10K’s are included for simultaneous measurement of two shafts. Includes 2 standard +/- 10VDC analog outputs.
RPM Channels. Two channels of shaft speed measurement. Includes shaft magnets and a pair of rpm pickups on magnetically-mounted adjustable arms. Pick-ups include 30′ (9 m) of cable that ties in directly to the Field Test 2 integrated in the carrying case.

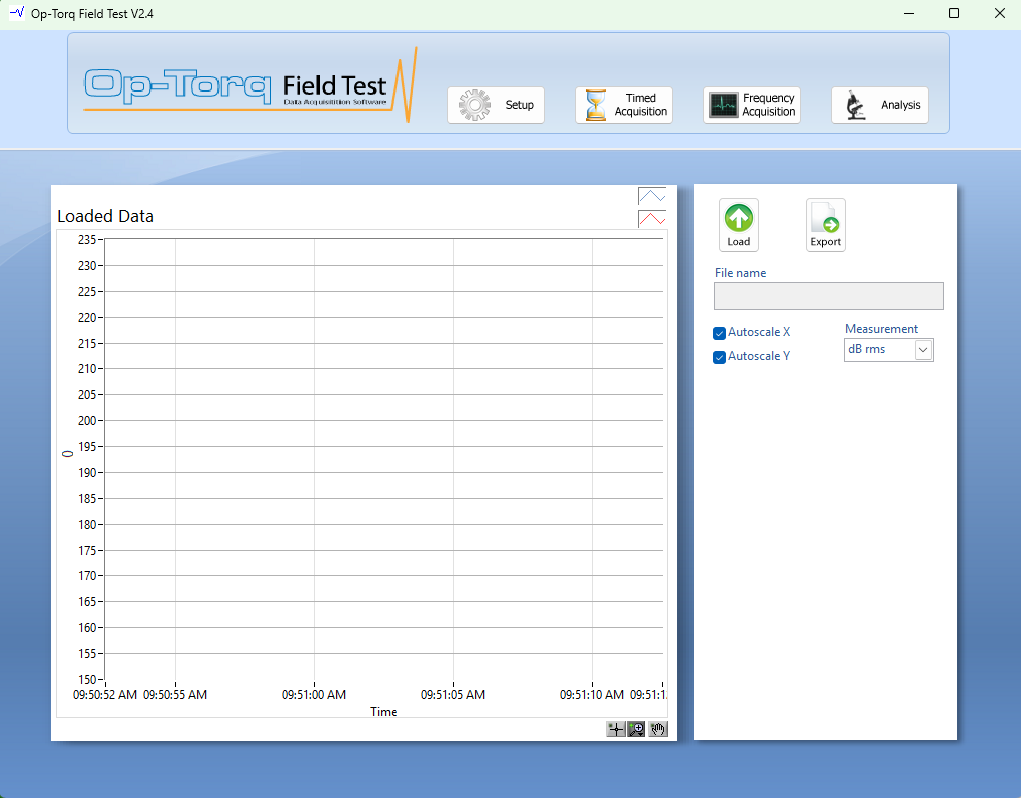

Field Test 2 Data Acquisition System. Logs the data from the TorqueTrak 10K units and speed pick-ups. Software automatically calculates power and outputs data in csv/.xls format. USB data cable connection to user-supplied laptop.
